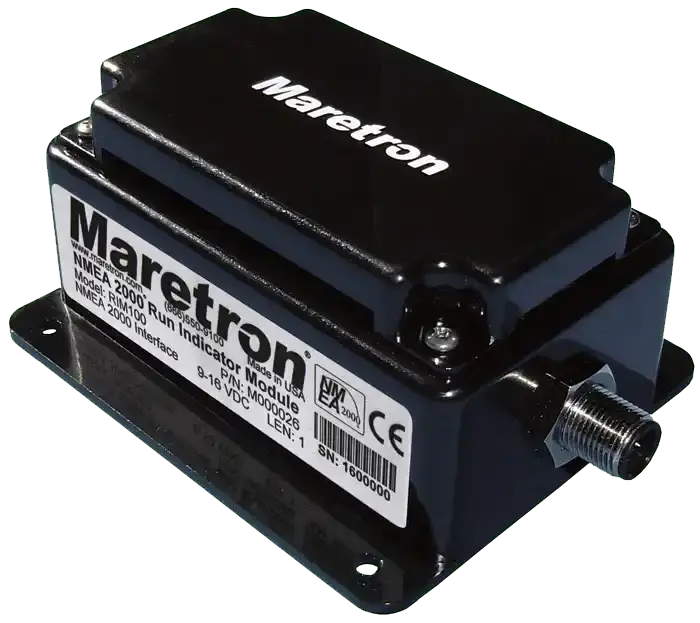

Nmea 2000 Run Indicator Module – Marine Engine Status Display Device

Description

Attributes

• Display Type: No Display
• Operating Voltage: 9 To 32 Volt
• Ampere Rating: 0.05 Amp
• Color: Black
• Dimensions: 4.2 Inch Width x 3-1/2 Inch Depth x 2.03 inch Height
• Certifications: NMEA 2000® Approved/ IEC 60945/ FCC Certified/ CE Certified
• Quantity: Single

Product Description

Maretron’s Run Indicator Module monitors both AC and DC electrical circuits and reports, over an NMEA 2000® network, whether or not the electrical circuit is energized and running. The power monitor works equally as well for monitoring manually switched loads (e.g., running lights, anchor lights, or deck lights) as it does for automatically switched loads. Monitoring automatically switched loads (e.g. bilge pumps, engine exhaust/intake fans, and transfer pumps) via the power monitor is especially useful because you know exactly when equipment is, or isn’t running. Best of all, the power monitor is NMEA 2000® certified so you can view any and all run indicator status anywhere on the vessel using a compatible NMEA 2000® display. The power monitor is a key component of Maretron’s N2KView® vessel monitoring and control system.

Features & Benefits

• NMEA 2000® Interface
• Waterproof Connectors
• Sealed Waterproof Enclosure
• Opto-Isolated From NMEA 2000® Eliminating Potential Ground Loops
• Monitors And Reports The Running Status Of Connected Devices
• Works With Both AC And DC Loads
• Works With Both Automatically And Manually Switched Loads
• Quick And Easy Installation
• Limited 2 Year Warranty
